XVR5216AN-min

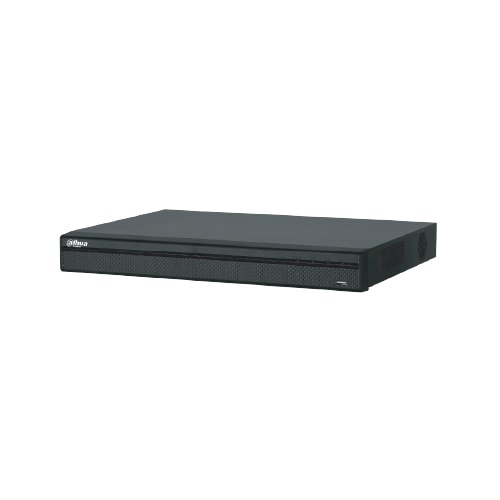

XVR | 5216AN

Video Input: 16 channels- Penta-brid (AHD, HDCVI, CVBS (analogique), HDTVI, IP)
H.264 dual-stream video compression
Resolution: 1080P/720P (realtime preview)
Audio: 1 ch(I), 1 ch RCA(O)
Display: 1 HDMI, 1VGA
Record Rate: Main Stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF
Sub Stream: D1/CIF/QCIF(125/30fps)
Bit Rate: 1kbps~6144Kbps
Network: RJ45 port (1000M)
HDD: Support 2 SATA HDDs up to 6TB, 2 USB(1 USB 2.0, 1 USB 3.0)

UGS : XVR 5216AN. Catégories : , . Mots clés : , , , , , , .

Description du Produit

Technical Specification
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 4/8CH:1 HDMI ,1 VGA 16CH::1 HDMI ,1 VGA SPOT(configurable)
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 2 SATA Ports, up to 8TB capacity for each disk
eSATA N/A
Auxiliary Interface
USB 4/8CH: 2USB Ports(2 USB 2.0) 16CH:2USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232 N/A
RS485 1 Port, for PTZ Control
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
