XVR

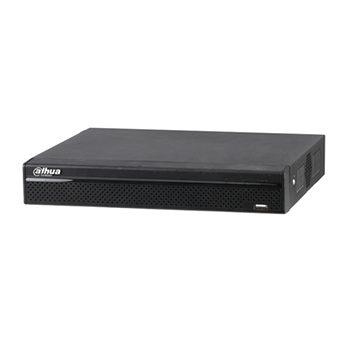

XVR | 4108HS

Video Input: 4 channels- Penta-brid (AHD, HDCVI, CVBS (analogique), HDTVI, IP)
H.264 dual-stream video compression
Resolution: 1080P (realtime preview)
Audio: 1 ch(I), 1 ch RCA(O)
Display: 1 HDMI, 1VGA
Record Rate: 1080N/960H/D1/HD1/BCIF/CIF/QCIF(1-25/30FPS)
Bit Rate: 1~6144Kbps
Network: RJ45 port (1000M)
HDD: Support 1 SATA HDDs up to 6TB, 2 USB2.0

UGS : XVR 4108HS. Catégories : , . Mots clés : , , , , , , , .

Description du Produit

Technical Specification
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4/6
8CH: 1/4/8/9/16
16CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion
detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video
Loss and Tampering
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 4CH: 1/4
8CH: 1/4/9
16CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate
to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera,
Full Screen, Repeat, Shuffle, Backup Selection,
Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 8TB capacity
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (2 USB 2.0)
RS232 N/A

RS485 1 Port, for PTZ Control

Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and more

Audio and Video
HDCVI Camera Input 4/8/16 Channel
IP Camera Input 4+1: each channel up to 2MP
8+2/16+2:each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream:
4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF
(1~25/30fps)
8/16CH:1080N(12fps)/720P(15fps)/960H/D1/HD1/
BCIF/CIF/QCIF (1~25/30fps)
Sub steram:4CH:CIF/QCIF(1~15fps)
8/16CH:CIF/QCIF(1~7fps)
Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD
(Video detection: Motion Detection, Video Loss,
Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec,
Post-record: 10 ~ 300 sec
Network
Interface 1 RJ-45 Port (100M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm
Server,P2P, IP Search (Support Dahua IP camera,
DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Electrical
Power Supply DC12V/2A
Power Consumption <10W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
Dimensions Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
Net Weight 0.75kg ( 1.7lb) (without HDD)
Gross Weight 1.5kg (3.3lb)
Installation Desktop installation
Certifications
Certifications FCC:Part 15 Subpart B ICES 003 Issue 6
CE:EN 55032:2012+AC:2013(Class B)
EN 55024:2010 EN 61000-3-2:2014
EN 50130-4:2011 EN 61000-3-3:2013
UL 60950 -1 and CAN/CSA C22.2 No.60950-1-07
