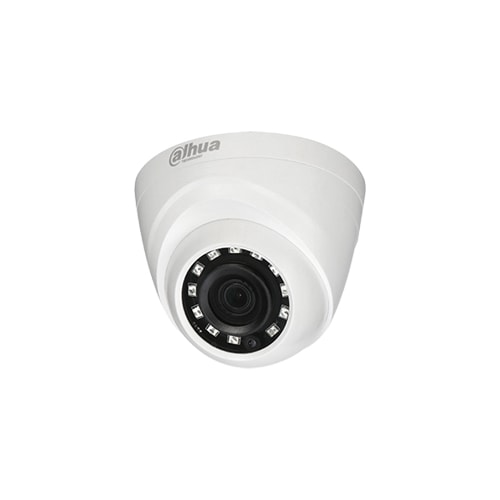

Caméra HDCVI | HAC-HDW1220R-0360-S3

Plastic Eyeball Dome Camera
2Mpx- Image Sensor: 1/2.9″
Objectif : Fixe 3.6mm
IR 20m

Description du Produit

Technical Specification
Camera
Image Sensor 1/2.9″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F2.0
Angle of View H: 80.8° (106°/51°)
Focus Control N/A
Close Focus Distance 800mm (500mm/1900mm)

31.5 » (19.7 »/74.8 »)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect 25px/m

(8px/ft)

3.6mm: 57m(187ft)

2.8mm:45m(149ft)

6mm: 86m(281ft)

Observe 63px/m

(19px/ft)

3.6mm: 23m(75ft)

2.8mm:18m(59ft)

6mm:34m(113ft)

Recognize 125px/m

(38px/ft)

3.6mm: 11m(37ft)

2.8mm:9m(30ft)

6mm: 17m(56ft)

Identify 250ppm

(76px/ft)

3.6mm: 6m(19ft)

2.8mm:5m(15ft)

6mm: 9m(28ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 2.8W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance NA
Construction
Casing Plastic
Dimensions Φ85.4mm×69.1mm (Φ3.36″×2.72″)
Net Weight 0.11kg (0.24lb)
Gross Weight 0.17kg (0.37lb)
